Q: Does thicker always mean safer? Is there a scientific approach to hydraulic cylinder wall thickness calculation and safety factor selection?

A: Accurate hydraulic cylinder wall thickness calculation is the foundation of safe design — not simply adding more material. Over-engineering only increases cost and weight.Over-engineering only increases cost and weight. This guide walks through 6 core calculation formulas and 3 verification methods to systematically explain the engineering logic behind hydraulic cylinder wall thickness design, helping you find the optimal balance between safety and cost.

Introduction

In extreme applications such as deep-sea equipment (6000 m depth ≈ 60 MPa), high-pressure test rigs (10,000 PSI ≈ 69 MPa), and hydraulic bolt tensioners (150 MPa+), hydraulic cylinders now operate far beyond traditional industrial standards (25–35 MPa).

High pressure doesn’t just increase thrust — it multiplies safety risks exponentially:

• Insufficient wall thickness → cylinder barrel bursting → equipment damage + personal injury
• Safety factor too low → fatigue failure → sudden leakage + unplanned downtime
• Over-engineering → weight increase of 50%+ → reduced equipment efficiency + higher cost

So how do you scientifically calculate hydraulic cylinder wall thickness? Should the safety factor be 2, 3, or 4? How do you select the optimal solution for different materials and operating conditions?

Drawing on 10 years of high-pressure hydraulic cylinder design experience and 500+ project cases, this guide reveals the engineering calculation logic behind safe high-pressure cylinder design.

1. Definition and Industry Applications of High-Pressure Hydraulic Cylinders

1.1 Pressure Classification

This guide focuses on: High-pressure cylinders above 5000 PSI (34.5 MPa)

1.2 Typical Application Scenarios

2. Failure Modes and Risk Analysis of High-Pressure Cylinders

2.1 Primary Failure Modes

2.2 Risk Quantification

Failure consequence severity assessment:

Design Principle: For applications involving personal safety, safety factors must be set at the upper limit, and 100% pressure testing is mandatory.

3. Six Core Hydraulic Cylinder Wall Thickness Calculation Formulas and Technical Notes

Formula 1: Thin-Wall Cylinder Formula (Applicable when D/t ≥ 20)

Applicable conditions: Cylinder outer diameter / wall thickness ≥ 20; suitable for low-to-medium pressure

t = (P × D) / (2 × σ_allowable × η + P) + C

Allowable stress calculation:

σ_allowable = σ_yield / n

• σ_yield: Material yield strength (MPa)
• n: Safety factor (typically 2–4)

Example calculation:

• Bore diameter D = 100 mm
• Design pressure P = 35 MPa
• Material: 27SiMn, σ_yield = 520 MPa
• Safety factor n = 3
• Corrosion allowance C = 2 mm

σ_allowable = 520 / 3 = 173 MPa
t = (35 × 100) / (2 × 173 × 1 + 35) + 2
t = 3500 / 381 + 2 = 9.2 + 2 = 11.2 mm
→ Round up: t = 12 mm

Formula 2: Thick-Wall Cylinder Formula (Applicable when D/t < 20)

Applicable conditions: High-pressure / ultra-high-pressure applications — the thick-wall formula is mandatory.

Lamé’s Equation:

t = D/2 × [√((σ_allowable + P) / (σ_allowable - P)) - 1]

Example calculation (ultra-high pressure):

• Design pressure P = 70 MPa
• Other parameters unchanged from Formula 1

σ_allowable = 520 / 3 = 173 MPa
t = 100/2 × [√((173 + 70) / (173 - 70)) - 1]
t = 50 × [√(243 / 103) - 1]
t = 50 × [√2.36 - 1] = 50 × [1.54 - 1] = 50 × 0.54 = 27 mm
​
Verification: D/t = 100/27 = 3.7 < 20 → Confirmed thick-wall; formula is applicable ✓

Formula 3: Maximum Working Stress Verification

Purpose: Verify that the maximum hoop stress at the inner wall is within safe limits.

σ_hoop_max = P × (D_o² + D_i²) / (D_o² - D_i²)

Safety condition: σhoop_max ≤ σyield / n

Example verification:

• D_i = 100 mm, t = 27 mm, D_o = 154 mm
• P = 70 MPa, σ_yield = 520 MPa, n = 3

σ_hoop_max = 70 × (154² + 100²) / (154² - 100²)
           = 70 × (23716 + 10000) / (23716 - 10000)
           = 70 × 33716 / 13716 = 70 × 2.46 = 172 MPa
​
Allowable stress = 520 / 3 = 173 MPa
172 MPa < 173 MPa ✓ Safe

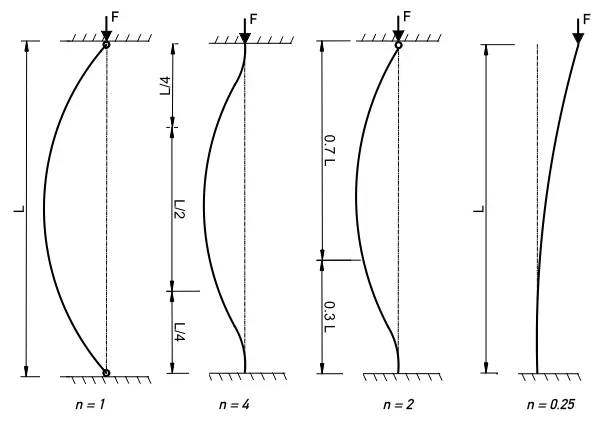

Formula 4: Piston Rod Diameter and Buckling Verification

Purpose: Prevent the piston rod from buckling under compressive load.

Euler’s Buckling Formula:

F_critical = (π² × E × I) / (K × L)²

Safety condition:

F_working × n_buckling ≤ F_critical

• n_buckling: Buckling safety factor, typically 3–4

Piston rod diameter estimation:

d ≥ 0.03 × √F_working   (F in N, d in mm)

Or by rule of thumb: d ≈ (0.5–0.7) × D_cylinder

Formula 5: End Cap Thread Strength Verification

Purpose: Ensure end cap threads do not fail in shear or tension under high pressure.

Thread shear strength:

τ = F / (π × d_pitch × h × z)

Safety condition: τ ≤ τallowable (typically σyield / 4)

Thread tensile strength:

σ_tensile = F / A_stress

• A_stress: Thread stress area (mm²)
• Safety condition: σtensile ≤ σyield / n

Design recommendations:

• For high-pressure cylinder end caps, prefer flange + tie-rod connections
• If threads are required, minimum engaged threads z ≥ 8–10
• Use fine threads (lower stress concentration)

Formula 6: Fatigue Life Estimation

Purpose: Predict fatigue life under pressure cycling.

S-N Curve Simplified Estimation:

N = (σ_a / σ_f')^(-1/b)

Simplified engineering guide for carbon/alloy steel:

Recommendation: Keep working stress below 60% σ_yield to ensure a fatigue life exceeding 500,000 cycles.

4. Safety Factor Selection Logic and Industry Standards

4.1 Factors Affecting Safety Factor

4.2 Industry Standard Recommended Values

4.3 Recommended Values

5. Industry Case Studies

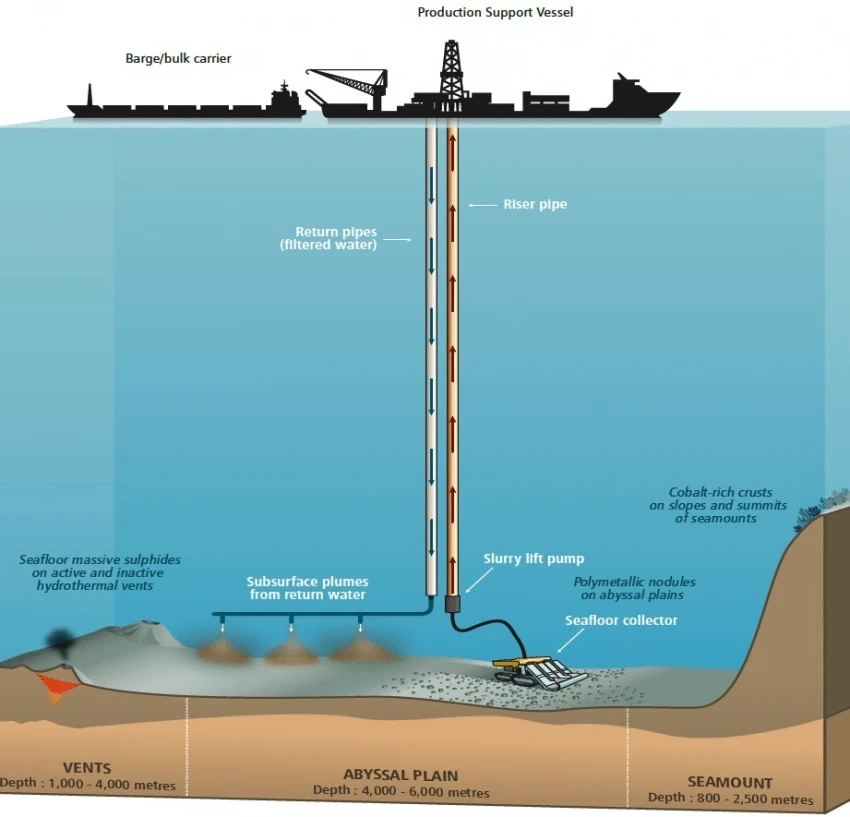

Case 1: 6000 m Deep-Sea ROV Hydraulic Cylinder

Client: A marine engineering equipment manufacturer

Challenge: Operating depth 6000 m (external pressure 60 MPa), internal pressure 50 MPa, bidirectional high pressure, seawater corrosion environment.

Solution:

Wall thickness calculation:

• Bore diameter D_i = 80 mm
• Design pressure P = 50 MPa (internal) + 60 MPa (external) = 100 MPa equivalent
• Material: 17-4PH stainless steel (seawater corrosion resistant), σ_yield = 720 MPa
• Safety factor n = 4.0 (marine + deep-sea)

σ_allowable = 720 / 4 = 180 MPa
t = 80/2 × [√((180 + 100) / (180 - 100)) - 1]
t = 40 × [√(280/80) - 1] = 40 × [√3.5 - 1] = 40 × 0.87 = 34.8 mm
→ Round up: t = 36 mm, D_o = 152 mm

Verification testing:

• Static pressure test: 250 MPa (2.5×) × 3 minutes — no leakage, no deformation
• Fatigue test: 50 MPa × 500,000 cycles — no cracking
• Salt spray test: 1000 hours neutral salt spray — corrosion grade ≤ Level 2

Result: DNV-GL certified; deployed successfully for 3 years with zero failures.

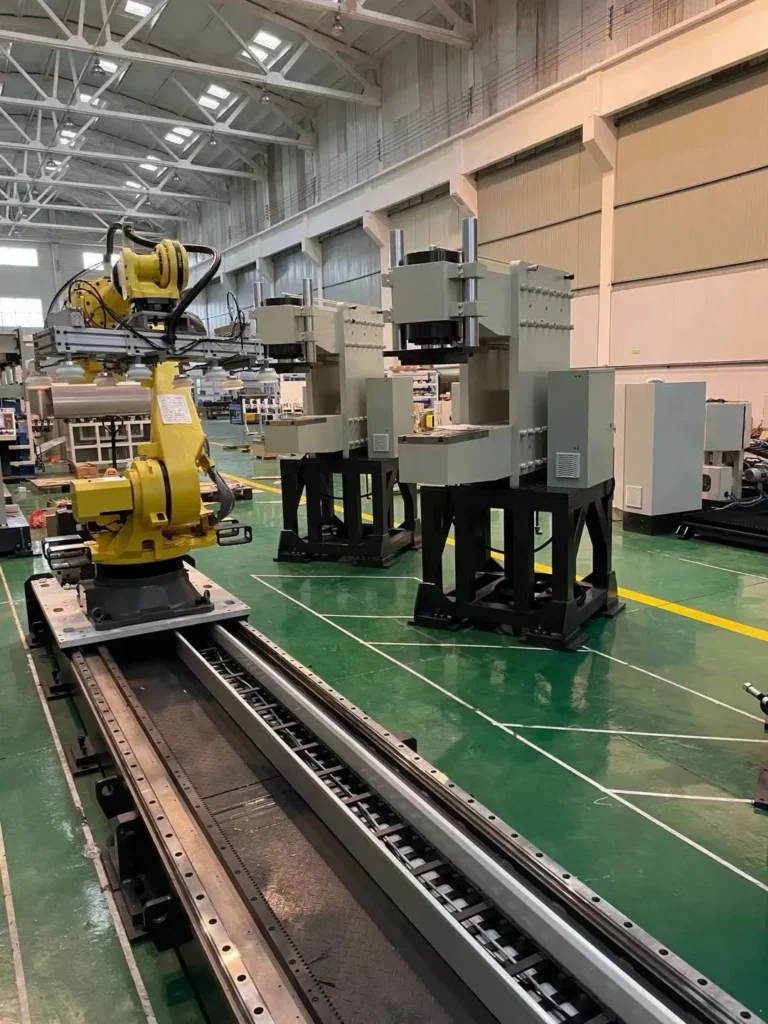

Case 2: 10,000 PSI Hydraulic Test Rig Cylinder

Client: A hydraulic component testing center

Challenge: Test pressure 70 MPa (10,000 PSI), high-frequency pressure cycling (10 cycles/minute), 24-hour continuous operation.

Solution:

Fatigue-optimized design:

• Cylinder material: 42CrMo quenched and tempered, σ_yield = 680 MPa
• Safety factor n = 4.5 (high-frequency cycling + test equipment)
• Inner wall roller burnishing (improves fatigue strength by 20–30%)
• Transition radii R ≥ 3 mm (reduces stress concentration)

Wall thickness calculation:

D_i = 60 mm, P = 70 MPa, σ_allowable = 680/4.5 = 151 MPa
t = 60/2 × [√((151 + 70) / (151 - 70)) - 1]
t = 30 × [√(221/81) - 1] = 30 × [√2.73 - 1] = 30 × 0.65 = 19.5 mm
→ Round up: t = 22 mm (fatigue margin applied)

Verification testing:

• Pressure cycling: 70 MPa × 2,000,000 cycles — no leakage
• Burst test: failure at 210 MPa (3.0×); fracture analysis confirms ductile fracture mode

Result: Operated continuously for 2 years, completing over 5,000,000 pressure cycles with stable performance.

Case 3: 150 MPa Hydraulic Bolt Tensioner Cylinder

Client: A power equipment manufacturer

Challenge: Working pressure 150 MPa, short stroke (50 mm), extremely compact structure required, safety factor ≥ 5.

Solution:

Extreme-pressure design:

• Cylinder material: 300M ultra-high-strength steel, σ_yield = 1450 MPa
• Safety factor n = 5.0 (extreme pressure + personal safety)
• Construction: monolithic forging, no welds

Wall thickness calculation:

D_i = 40 mm, P = 150 MPa, σ_allowable = 1450/5 = 290 MPa
t = 40/2 × [√((290 + 150) / (290 - 150)) - 1]
t = 20 × [√(440/140) - 1] = 20 × [√3.14 - 1] = 20 × 0.77 = 15.4 mm
→ Round up: t = 18 mm, D_o = 76 mm

Special design features:

• End cap uses conical face seal + thread lock
• Piston rod surface hard chrome plated (hardness ≥ HRC 60)
• 100% ultrasonic inspection + magnetic particle inspection

Result: Passed third-party pressure vessel certification; successfully deployed in 30+ power plant maintenance projects.

6. Frequently Asked Questions (FAQ)

Q1: Is the thick-wall formula always required for high-pressure cylinders?

The thick-wall formula (Lamé’s Equation) is mandatory when D/t < 20. The thin-wall formula underestimates stress and creates safety hazards. General rule of thumb:

• Pressure < 25 MPa: Thin-wall formula acceptable
• Pressure 25–40 MPa: Thick-wall verification recommended
• Pressure > 40 MPa: Thick-wall formula mandatory

Q2: What is the practical difference between a safety factor of 3 vs. 4?

Using a 70 MPa cylinder (σ_yield = 520 MPa) as an example:

• n = 3: Allowable stress 173 MPa, wall thickness ≈ 27 mm
• n = 4: Allowable stress 130 MPa, wall thickness ≈ 38 mm

Wall thickness increases by 40%, weight by approximately 35%, cost by 25–30% — but fatigue life improves by a factor of 3–5. For critical applications, the higher value is recommended.

Q3: Are imported materials safer than domestic materials?

The key is material certification, not country of origin:

• Imported brands (materials specified by Parker, Rexroth): Full mill certificates + third-party test reports
• Certified domestic materials (major mills such as Baowu, Xingcheng): Equivalent standards, 30–40% lower cost

We use certified domestic materials with 100% incoming inspection, benchmarked against import specifications.

Q4: How often should high-pressure cylinders be pressure-tested?

Depends on application:

• General industrial: Every 2 years or every 5,000 operating hours
• Critical equipment (lifting, personal safety): Annually or every 2,000 operating hours
• Marine / corrosive environments: Annually + after every major overhaul
• Test equipment: Every 6 months

Q5: Can you provide a wall thickness calculation report as an acceptance document?

Yes. All high-pressure cylinder projects include:

• Wall thickness calculation report (formulas, parameters, results)
• Stress analysis report (CAE simulation)
• Pressure test report (measured data)
• Material certificate (original mill quality certificate)

7. Conclusion

The safety of a high-pressure cylinder is not achieved by “adding more thickness” — it is achieved through scientific calculation, proper material selection, and rigorous verification:

• Wall thickness calculation must use the correct formula (thick-wall vs. thin-wall)
• Safety factor must account for operating conditions, materials, and failure consequences
• Fatigue life must be predicted and verified at the design stage
• Pressure testing is the final line of defense and must never be skipped

Choosing a supplier with solid calculation capability, simulation capability, and verification capability is the key to ensuring that high-pressure cylinders are safe and reliable.

8. Why Choose Our High-Pressure Cylinder Services?

• Expert engineering team — 5 hydraulic design engineers, proficient in high-pressure cylinder calculation and simulation
• Complete documentation — Every project includes a detailed wall thickness calculation report + stress analysis report
• In-house pressure test rig — 200 MPa test capability for 1.5× to 3.0× verification
• Certified materials — Partnership with major mills; full material traceability
• Industry experience — 100+ high-pressure projects across marine engineering, power, and test equipment
• Quality certifications — ISO 9001, CE, DNV-GL certified; exported to 30+ countries

9. Request a Calculation Report and Pressure Verification Report

Our engineers will provide the following free of charge:

1. Preliminary wall thickness calculation (based on your operating parameters)
2. Safety factor selection recommendations
3. Material recommendations (with cost comparison)
4. Pressure testing plan recommendations

Information required:

• Working pressure (MPa / PSI)
• Cylinder bore diameter (mm)
• Stroke (mm)
• Operating environment (temperature, fluid medium, corrosion conditions, etc.)
• Required safety level

Appendix: Common Material Mechanical Properties
