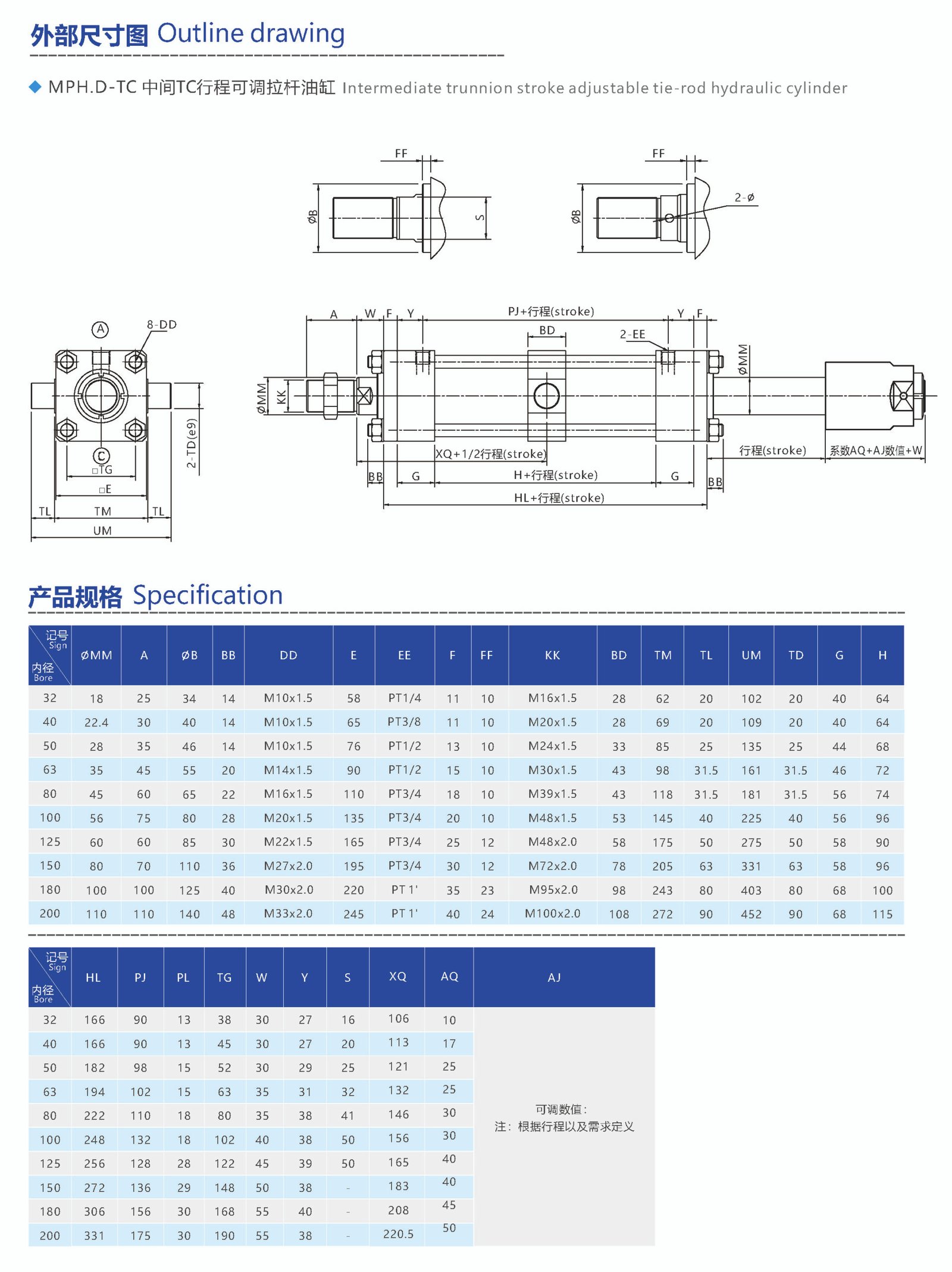

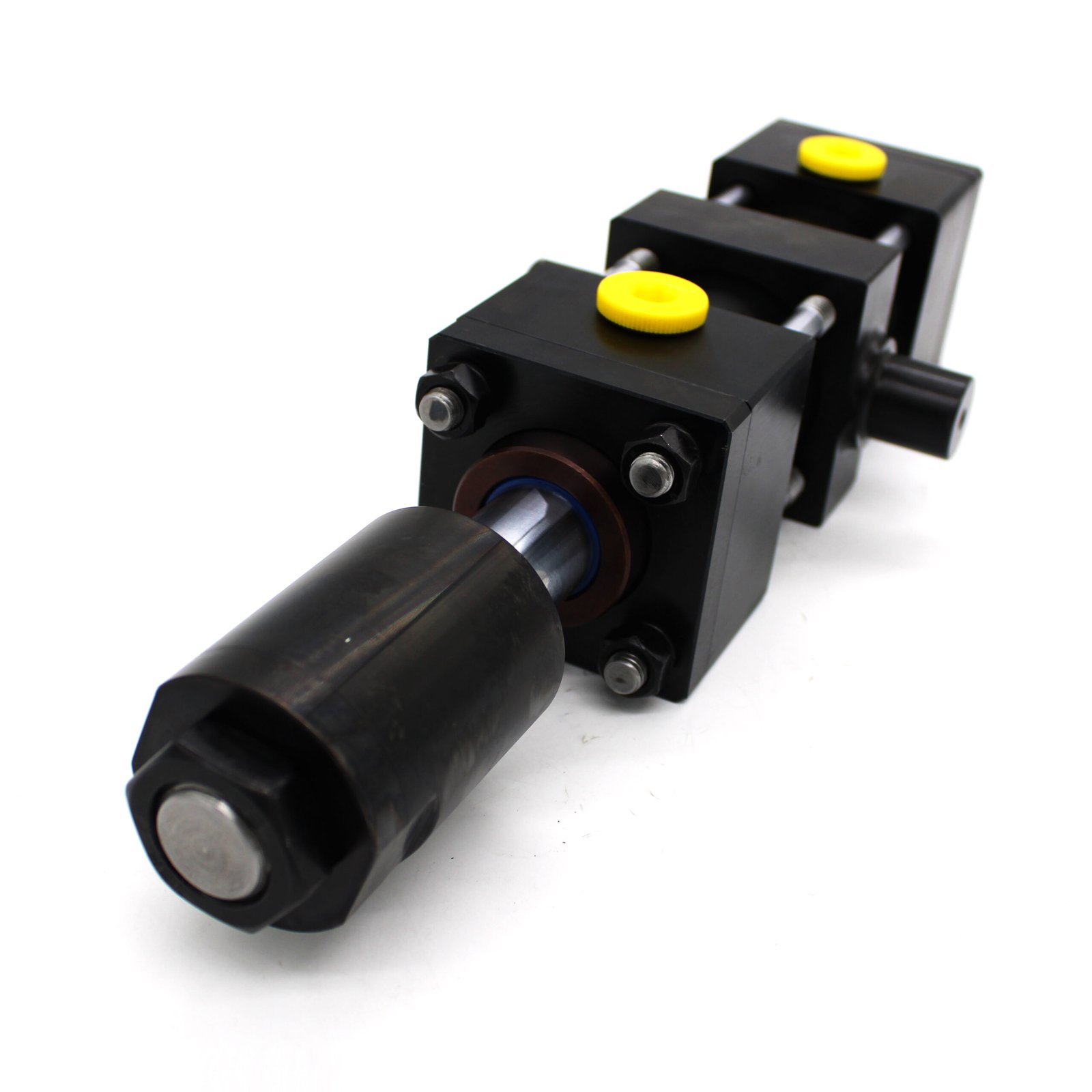

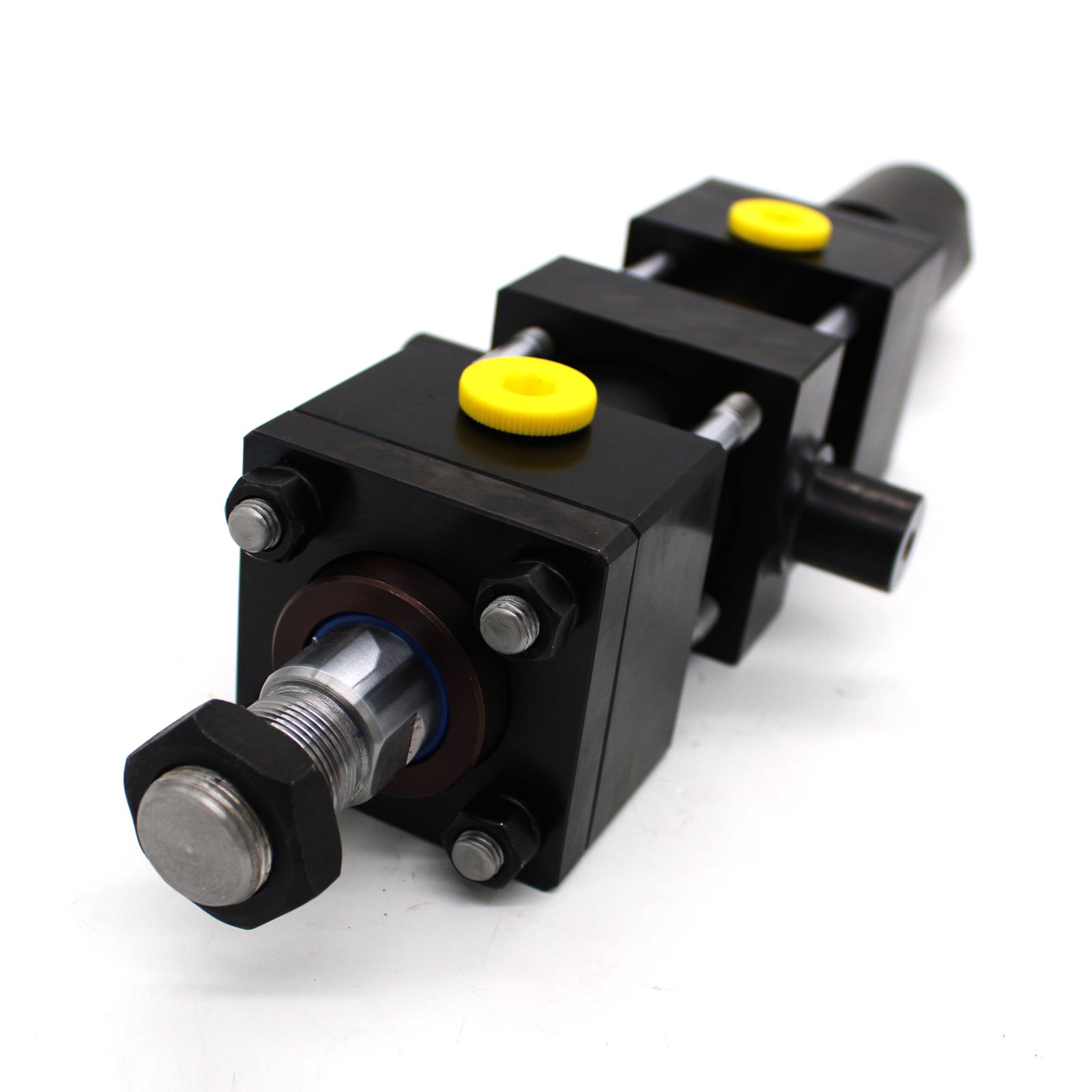

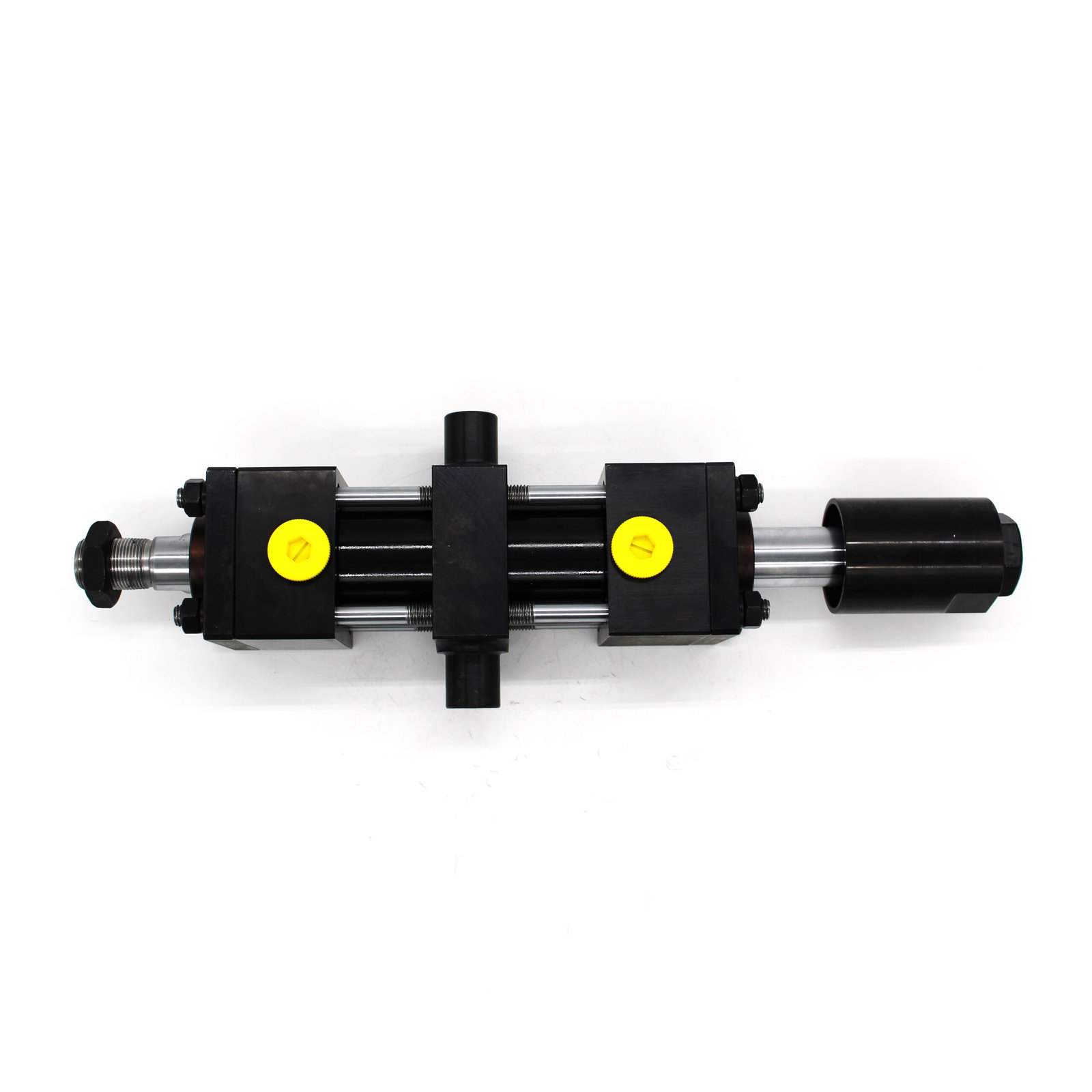

Intermediate Trunnion Stroke Adjustable Tie-Rod Hydraulic Cylinder
1.Trunnion Mounting: Head trunnion, intermediate trunnion ,rear trunnion opption
2.Operating pressure: medium duty 2000PSI (14 Mpa), heavy duty 3000PSI (21Mpa)
3.Tube: Cold drawn high impact stainless steel tube or carbon steel.
4.Rod: carbon steel, hard chrome plated and polished
5.Piston: Precision machined ductile iron (carbon steel or copper is option), provides high strength and an excellent bearing surface for extended cylinder life.
6.TIE RODS – Pre-stressed, high carbon steel tie rod construction eliminates axial loading of cylinder tube and maintains compression on tube
7.CUSHION – Precision machined cushion are available at either end and provide smooth deceleration, which helps reduce end of stroke shock.
8.Seals: highest quality configurations compatible
Frequently Asked Questions
Below you can find some frequently asked questions regarding custom hydraulic cylinders and engineering support. Please feel free to contact us if you have any other questions.
Do you provide customized hydraulic cylinders?
Yes, we do. Mounting style, stroke, output force, and pressure rating can all be customized.
We develop and manufacture products based on customer requirements, drawings, or samples.
Our enginners each have over 10 years of experience. As long as you provide your concept, we can turn it into a finished product. During the customization process, we will confirm every key detail with you to ensure the final product meets your exact needs.
How do you ensure product stability and quality?
Quality is our core commitment. If any quality issue occurs, we guarantee replacement or refund.
Under normal use, our cylinders have a service life of 3–5 years. If any problem occurs within the first year, we will replace it free of charge, and we offer lifetime technical support.
All of our cylinders are manufactured under the ISO9001 quality management system. Custom non-standard products follow the same strict quality requirements.
What advantages do your products offer?
We use Hallite oil seals, tested up to 2 million cycles.
According to different applications, we choose the most suitable materials:
- 45# steel for standard cylinders
- 40Cr for medium- and high-pressure cylinders
- 16Mn / Q345 for low-temperature cylinders
Our cylinders operate reliably in extreme environments from 300°C to –55°C.
What is your delivery time?
After the design drawing is confirmed, production time varies by product type:
- Standard tie-rod / compact cylinders: around 12 working days
- Complex welded cylinders: around 25 working days
We arrange production based on schedule and will deliver within the promised timeframe.
To ensure urgent orders can also be met, we have a dedicated rapid-response team for R&D, custom, and rush-order production. If you have an urgent requirement, we will do our best to support your deadline.
